Vacuum Chuck with Clamping Table for CNC Machining Centers & Milling Machines

MOQ:	1
Price:	100
Standard Packaging:	Standard Export Packaging
Delivery Period:	15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	500pcs/day

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

Model Number

MC0303

Warranty:

One Year

Core Components:

Maganic

Size:

300x300x80mm

Magnetic Block Force Block:

25kg.f

Total Suction:

3300kg.f

OEM/ODM:

Available

Highlight:

CNC Machining Permanent Magnetic Vacuum Chuck

Custom Permanent Magnetic Vacuum Chuck

Product Description

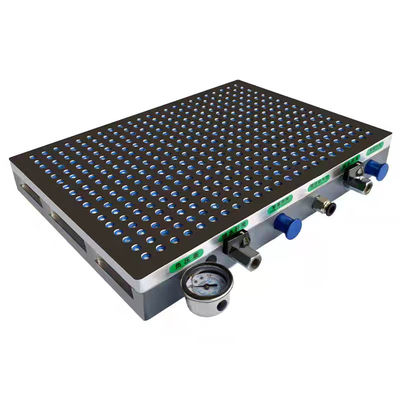

Custom Permanent Magnetic Vacuum Chuck without a Sealing Strip for CNC Machining Centers

Product Description:

Our vacuum chuck with integrated clamping table provides a robust and versatile workholding solution for CNC machining centers and milling machines. This system combines the powerful and uniform clamping force of vacuum technology with a precision-engineered table, offering secure and stable fixturing for a wide range of machining operations. It's designed to enhance machining accuracy, reduce vibration, and streamline setup times for various workpiece materials and geometries.

Key Features:

Integrated Vacuum Chuck and Clamping Table: Combines the benefits of vacuum holding with a stable and precisely machined platform.
Versatile Application: Ideal for a wide range of CNC machining center and milling applications.
Secure and Uniform Clamping: Provides consistent holding force across the workpiece surface, minimizing vibration and maximizing machining precision.
Adaptable to Various Materials: Effectively holds ferrous and non-ferrous metals, plastics, composites, wood, and more.
Accommodates Complex Geometries: Suitable for securing irregularly shaped workpieces where traditional clamps are difficult to apply.
Reduced Setup Times: Quick and easy workpiece loading and unloading, significantly decreasing machine downtime.
Minimized Clamping Interference: Allows for machining on multiple sides of the workpiece without repositioning or clamp interference.
Damage-Free Workholding: Eliminates the risk of workpiece deformation or scratching associated with mechanical clamps.
Modular and Customizable: Table sizes and vacuum zones can be configured to match specific machine table dimensions and workpiece requirements.
Optional Integrated Vacuum Control: Advanced systems offer precise vacuum level control and monitoring for optimal clamping force and safety.

2. Specifications

Specification	Magnetic attraction	Width (mm)	Length (mm)	Height (mm)	Weight (kg)
150*150	≥40KG	150	150	80	13.5
150*300	≥40KG	150	300	80	27
150*350	≥40KG	150	350	80	31.5
150*400	≥40KG	150	400	80	36
200*200	≥40KG	200	200	80	24
200*300	≥40KG	200	300	80	36
200*400	≥40KG	200	400	80	48
200*500	≥40KG	200	500	80	60
250*500	≥40KG	250	500	80	75
300*300	≥40KG	300	300	80	54
300*400	≥40KG	300	400	80	72
300*500	≥40KG	300	500	80	90
300*600	≥40KG	300	600	80	108
300*800	≥40KG	300	800	80	144
400*400	≥40KG	400	400	80	96
400*500	≥40KG	400	500	80	120
400*600	≥40KG	400	600	80	144
400*800	≥40KG	400	800	80	192
500*500	≥40KG	500	500	80	150
500*600	≥40KG	500	600	80	180
500*800	≥40KG	500	800	80	240
600*800	≥40KG	600	800	80	288
600*1000	≥40KG	600	1000	80	360

Applications:

Precision milling and engraving
High-speed machining of various materials
Securing thin or delicate workpieces
Machining of complex contours and shapes
Prototyping and small to medium batch production
Automation and robotic loading/unloading

Benefits:

Achieves high machining accuracy and superior surface finish.
Improves production efficiency through faster setup and cycle times.
Reduces workpiece damage and scrap rates.
Offers flexibility in machining complex parts.
Provides a secure and stable hold for demanding operations.
Simplifies fixturing processes.
Enhances safety during machining.

Why Choose Us:

We specialize in providing high-performance and custom vacuum workholding solutions for CNC machining centers and milling machines. Our vacuum chucks with clamping tables are engineered for precision, versatility, and ease of integration. Our experienced team can design and manufacture solutions tailored to your specific machining needs, offering competitive pricing and excellent technical support.

Contact our sales engineers today to discuss your CNC machining workholding requirements and receive a customized quote for our vacuum chuck with clamping table. Let us help you optimize your machining operations for greater accuracy, efficiency, and productivity.
