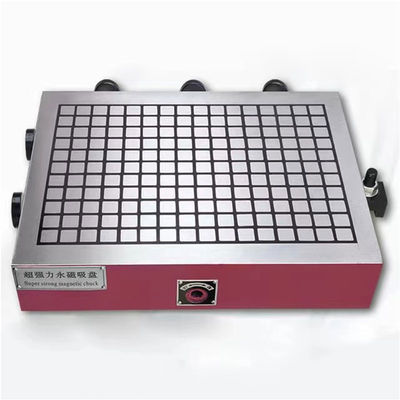

Custom Powerful Permanent Magnetic Chuck Table for Precision Engraving & Milling

MOQ:	1
Price:	100
Standard Packaging:	Standard Export Packaging
Delivery Period:	15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	500pcs/day

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

Model Number

MC0303

Warranty:

One Year

Core Components:

Maganic

Size:

300x300x80mm

Magnetic Block Force Block:

25kg.f

Total Suction:

3300kg.f

OEM/ODM:

Available

Highlight:

Engraving Magnetic Chuck Table

Powerful Permanent Magnetic Chuck Table

Milling Machine Magnetic Chuck Table

Product Description

Custom Powerful Permanent Magnetic Chuck Table for Precision Engraving & Milling

Product Description:

Our custom powerful permanent magnetic chuck tables are specifically designed to provide exceptional workholding force and stability for precision engraving and milling operations. Utilizing advanced permanent magnet technology, these chuck tables offer a reliable and energy-efficient solution for securely clamping ferrous workpieces of various sizes and shapes. The custom design ensures optimal compatibility with your specific engraving and milling machines, enhancing accuracy and productivity.

Key Features:

Customizable Design: Tailored dimensions and magnetic pole configurations to perfectly match your engraving and milling machine table.
Powerful Permanent Magnets: Delivers strong and consistent holding force without the need for continuous power supply, ensuring energy efficiency and safety.
High Precision Workholding: Provides a stable and vibration-dampening platform for intricate engraving and precise milling.
Versatile Application: Securely clamps ferrous materials of varying thicknesses and geometries.

Low Profile Design: Minimizes interference with cutting tools and maximizes machining accessibility.
Quick and Easy Workpiece Clamping: Simple on/off magnetic activation for fast setup and changeover times.
Uniform Clamping Force: Distributes magnetic force evenly across the workpiece surface, preventing distortion.

Durable and Low Maintenance: Robust construction ensures long-term reliability with minimal maintenance requirements.

Safety Features: Incorporates safety mechanisms to prevent accidental demagnetization and ensure operator safety.

2. Specifications

Specification	Magnetic attraction	Width (mm)	Length (mm)	Height (mm)	Weight (kg)
150*150	≥40KG	150	150	80	13.5
150*300	≥40KG	150	300	80	27
150*350	≥40KG	150	350	80	31.5
150*400	≥40KG	150	400	80	36
200*200	≥40KG	200	200	80	24
200*300	≥40KG	200	300	80	36
200*400	≥40KG	200	400	80	48
200*500	≥40KG	200	500	80	60
250*500	≥40KG	250	500	80	75
300*300	≥40KG	300	300	80	54
300*400	≥40KG	300	400	80	72
300*500	≥40KG	300	500	80	90
300*600	≥40KG	300	600	80	108
300*800	≥40KG	300	800	80	144
400*400	≥40KG	400	400	80	96
400*500	≥40KG	400	500	80	120
400*600	≥40KG	400	600	80	144
400*800	≥40KG	400	800	80	192
500*500	≥40KG	500	500	80	150
500*600	≥40KG	500	600	80	180
500*800	≥40KG	500	800	80	240
600*800	≥40KG	600	800	80	288
600*1000	≥40KG	600	1000	80	360

Applications:

Precision engraving of steel and iron parts
High-accuracy milling of ferrous metals
Securing workpieces for EDM (Electrical Discharge Machining)
Fixturing for grinding operations
Holding workpieces for inspection and measurement
Automation and robotic loading/unloading

Benefits:

Achieves high precision and superior surface finish in engraving and milling.
Improves machining efficiency with fast and easy workpiece clamping.
Provides a strong and secure hold for demanding operations.
Reduces vibration and enhances tool life.

Offers an energy-efficient and safe workholding solution.
Simplifies fixturing for various workpiece shapes.
Minimizes setup times and increases productivity.

Why Choose Us:

We specialize in designing and manufacturing high-performance, custom permanent magnetic chuck tables for precision machining applications, including engraving and milling. Our experienced engineering team can tailor solutions to perfectly match your machine tools and workpiece requirements, ensuring optimal performance, accuracy, and efficiency.

Contact our sales engineers today to discuss your specific engraving and milling workholding needs and receive a customized quote for our powerful permanent magnetic chuck tables. Let us help you optimize your precision machining operations.
