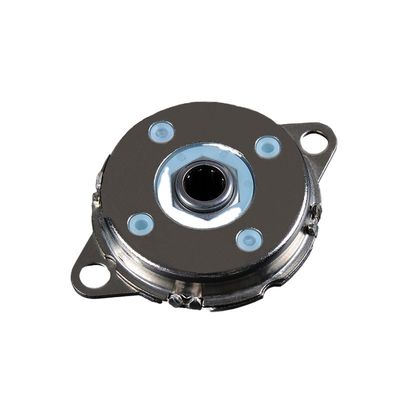

Metal Rotary Dampers Providing Controlled Resistance To Movement

MOQ:	1000
Price:	0.9
Standard Packaging:	Standard Export Packaging
Delivery Period:	15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	50000pcs/day

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

Model Number

Name:

Rotary Damper

Torque Range:

0.5 - 10Nm

Body Material:

Pressure Angle:

Silicone Oil

Function:

Soft Closing

Highlight:

Metal Rotary Dampers

Controlled Resistance Rotary Dampers

Movement Rotary Dampers

Product Description

Metal Rotary Dampers: Providing Controlled Resistance to Movement

In the dynamic landscape of mechanical engineering, the need for components that can precisely regulate motion is of utmost importance. Rotary dampers have emerged as essential devices, offering controlled resistance to rotational movement across a wide spectrum of applications. These dampers play a pivotal role in ensuring smooth, safe, and efficient operation in various systems, from delicate consumer electronics to heavy - duty industrial machinery.

1. Understanding Rotary Dampers

Basic Working Principle

At their core, rotary dampers operate on the principle of dissipating energy to slow down or control rotational motion. They typically consist of a housing, a rotating shaft, and a damping mechanism. In fluid - based rotary dampers, a viscous fluid, such as silicone oil, is sealed within the housing. When the shaft rotates, a piston or vane attached to the shaft moves through the fluid. The viscosity of the fluid resists this movement, generating a damping force. This force is proportional to the speed of rotation, meaning that as the shaft rotates faster, the resistance from the fluid increases, effectively slowing down the rotation.

In friction - based rotary dampers, the damping effect is achieved through the friction between two surfaces. These surfaces can be made of materials like metal, rubber, or specialized composites. The pressure applied between the surfaces can be adjusted to control the amount of friction and, consequently, the damping force. For example, increasing the pressure between two metal plates in a friction - based damper will result in a higher damping force.

Different Types of Rotary Dampers

There are several types of rotary dampers, each tailored to specific applications. Bidirectional rotary dampers are designed to provide damping in both clockwise and counter - clockwise rotational directions. This makes them suitable for applications where movement in either direction needs to be controlled, such as in steering systems of vehicles or in adjustable furniture pieces like swivel chairs. One - way rotary dampers, on the other hand, offer damping in only one direction of rotation. They are often used in conveyor systems, where it is crucial to prevent reverse rotation of the conveyor belt, or in some types of machinery where a unidirectional movement needs to be regulated.

Adjustable rotary dampers are another important type. These dampers allow for the customization of the damping force. The adjustment can be made through various mechanisms, such as changing the amount of fluid in a fluid - based damper, altering the pressure between friction surfaces in a friction - based damper, or adjusting the magnetic field in magnetic - based rotary dampers (where a magnetorheological fluid is used, and its viscosity can be controlled by the magnetic field). This adjustability feature is highly beneficial in applications where the damping requirements may change over time or depending on different operating conditions.

Specifications

Model	R6301
Torque	0.5 - 10 Nm
Use Oil	Silicone Oil
Shell Material	SGCC
Shaft Material	POM
Usage Temperature	- 20 - 70℃
Max Use Angle	360°

2. Applications of Rotary Dampers

Consumer Electronics

In the world of consumer electronics, rotary dampers are used to enhance the functionality and user experience. In laptop screens that can be rotated or adjusted, rotary dampers provide a smooth and stable movement. When a user tilts the screen to a desired angle, the damper ensures that the movement is controlled, preventing the screen from dropping suddenly or moving erratically. This not only protects the delicate components inside the laptop but also provides a more comfortable and convenient user experience.

In portable speakers with adjustable stands, rotary dampers play a crucial role. The damper allows the stand to be set at different angles without wobbling, providing a stable base for the speaker. This is especially important when the speaker is placed on uneven surfaces. In addition, in cameras with rotating lenses, rotary dampers help to control the rotation of the lens, enabling precise focusing and zooming operations. The smooth and controlled movement provided by the damper ensures that the camera can capture high - quality images and videos.

Automotive Industry

The automotive industry heavily relies on rotary dampers for various applications. In the steering system, rotary dampers are used to provide a smooth and responsive feel to the driver. When the driver turns the steering wheel, the damper helps to reduce vibrations and shocks transmitted from the road surface to the steering column. This not only improves the driving experience but also enhances safety by allowing the driver to have better control over the vehicle.

In adjustable car seats, rotary dampers enable smooth and controlled movement. Passengers can easily adjust the position of the seat to their comfort level, and the damper ensures that the movement is not too fast or too slow. This is particularly important in luxury cars, where the comfort of the passengers is a top priority. In addition, in some automotive accessories, such as sunroofs and convertible tops, rotary dampers ensure that these components open and close smoothly and quietly, adding to the overall luxury and functionality of the vehicle.

Industrial Machinery

Industrial machinery often requires precise motion control, and rotary dampers are ideal for this purpose. In conveyor systems, rotary dampers are used to control the rotation of the conveyor pulleys. This ensures that the conveyor belt moves at a constant speed, preventing sudden stops or starts that could cause damage to the products being transported. In machine tools, such as lathes and milling machines, rotary dampers help to reduce vibrations during the cutting process. By providing a controlled resistance to the rotation of the cutting tools or the workpiece, the damper improves the quality of the machined parts and extends the lifespan of the cutting tools.

In printing presses, rotary dampers play a crucial role in ensuring the smooth rotation of the printing cylinders. This allows for precise ink transfer and sharp prints. The ability of the rotary damper to provide a consistent and controlled resistance to movement is essential in maintaining the high - speed and high - precision operation of industrial machinery.

Furniture and Interior Design

In the furniture and interior design industry, rotary dampers are used to create functional and user - friendly furniture pieces. In swivel chairs, the damper allows for smooth and controlled rotation, providing a comfortable seating experience. The damper can be adjusted to control the speed of rotation, ensuring that users can turn the chair easily without it spinning out of control. In adjustable tables, rotary dampers help in smoothly adjusting the height or angle of the tabletop. This is particularly useful in workspaces where users may need to change the position of the table for different tasks.

In addition, in some types of cabinetry, rotary dampers can be used to control the opening and closing of doors. The damper ensures that the doors close gently and quietly, preventing them from slamming shut and potentially damaging the cabinet or its contents. This not only improves the functionality of the furniture but also adds a touch of elegance to the interior design.

3. Benefits of Using Rotary Dampers

Smooth and Controlled Motion

The primary benefit of using rotary dampers is the ability to achieve smooth and controlled motion. In applications where sudden or uncontrolled movements can cause damage, discomfort, or inefficiencies, rotary dampers provide a reliable solution. Whether it's the delicate movement of a camera lens or the robust operation of an industrial conveyor system, the dampers ensure that the rotation is smooth, reducing the risk of mechanical failures and improving the overall performance of the system.

Protection of Components

Rotary dampers also play a crucial role in protecting the components of a mechanical system. By dissipating the energy of rotational motion, they reduce the stress and wear on other parts of the system. In a car's steering system, for example, the damper helps to protect the steering column, gears, and other components from the excessive forces generated by rough road surfaces. In industrial machinery, the damper can extend the lifespan of cutting tools, conveyor belts, and other moving parts by reducing vibrations and sudden impacts.

Enhanced Safety

In many applications, the use of rotary dampers enhances safety. In automotive steering systems, the smooth and controlled movement provided by the damper allows the driver to maintain better control of the vehicle, especially in emergency situations. In furniture, such as swivel chairs or adjustable tables, the damper prevents sudden and uncontrolled movements that could cause users to lose their balance and fall. In industrial settings, the dampers help to prevent accidents by ensuring that machinery operates in a predictable and controlled manner.

4. Design and Installation Considerations

Design Factors

When designing a rotary damper for a specific application, several factors need to be considered. The required damping force is a critical factor. This depends on the load being rotated, the speed of rotation, and the desired level of control. The type of damping mechanism, whether fluid - based, friction - based, or magnetic - based, also needs to be chosen based on the application requirements. For example, fluid - based dampers are often preferred for applications where a smooth and consistent damping force is required, while friction - based dampers may be more suitable for applications where a higher damping force is needed and some variability in the damping force can be tolerated.

The size and shape of the damper are also important design considerations. In applications where space is limited, such as in consumer electronics, a compact and lightweight damper may be required. The materials used in the construction of the damper, including the housing, shaft, and damping elements, need to be selected based on the operating environment. For example, in a corrosive environment, materials with high corrosion resistance, such as stainless steel or certain plastics, should be used.

Installation Process

Installing a rotary damper typically involves attaching the damper to the rotating component and the stationary frame. The installation process may vary depending on the type of damper and the application. In some cases, the damper may come with pre - drilled holes or mounting brackets for easy installation. In other cases, custom - made mounts may be required. The alignment of the damper is crucial to ensure proper operation. If the damper is not installed correctly, it may not provide the desired damping effect or may cause additional stress on the system. In some applications, such as in high - precision machinery, the installation may require the use of specialized tools and techniques to ensure accurate alignment and proper functioning of the damper.

5. Conclusion

Rotary dampers are versatile and essential components in modern mechanical engineering. Their ability to provide controlled resistance to rotational movement makes them invaluable in a wide range of applications, from enhancing the user experience in consumer electronics to ensuring the efficient and safe operation of industrial machinery. By understanding the working principles, types, applications, benefits, and design considerations of rotary dampers, engineers and designers can make informed decisions when incorporating these components into their systems. Whether you are involved in product design, manufacturing, or maintenance, considering the use of rotary dampers can significantly improve the performance, reliability, and safety of your products and systems. Reach out to our team of experts to explore how rotary dampers can be customized to meet your specific requirements and take your mechanical designs to the next level.
