High - Torque Metal Bidirectional Rotary Damper For Reliable Operation

Products

Stainless Steel Medical Tubing

Custom Medical Steel Parts

Mr. HIE

admin@hiehardware.com

86-0769-87011382

Contact Now

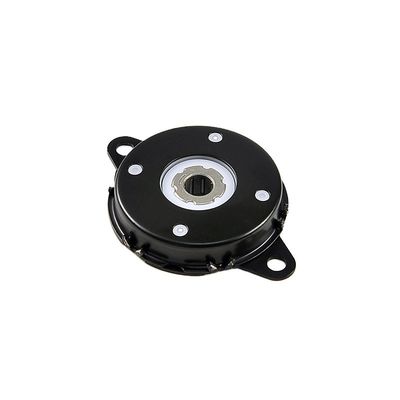

High - Torque Metal Bidirectional Rotary Damper For Reliable Operation

MOQ:	1000
Price:	0.9
Standard Packaging:	Standard Export Packaging
Delivery Period:	15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	50000pcs/day

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

Model Number

Name:

Rotary Damper

Torque Range:

0.5 - 10Nm

Body Material:

Pressure Angle:

Silicone Oil

Function:

Soft Closing

Highlight:

Reliable Operation Rotary Damper

High Torque Rotary Damper

Metal Bidirectional Rotary Damper

Product Description

High - Torque Metal Bidirectional Rotary Damper for Reliable Operation

In the intricate world of mechanical engineering, the demand for components that can offer precise motion control under high - stress conditions is ever - increasing. A high - torque metal bidirectional rotary damper has emerged as a critical solution, providing reliable operation across a diverse range of applications. This type of damper combines the strength of metal construction with the ability to handle substantial torque loads in both rotational directions, making it an ideal choice for industries where performance and durability are non - negotiable.

1. The Significance of Reliable Operation

Ensuring Smooth Motion in Mechanical Systems

Mechanical systems rely on the seamless movement of components to function effectively. In applications such as industrial machinery, automotive assemblies, and aerospace equipment, sudden or uncontrolled rotations can lead to inefficiencies, damage to other parts, and potential safety hazards. A high - torque metal bidirectional rotary damper serves as a safeguard, ensuring that rotational motion is smooth, controlled, and consistent. For example, in a large - scale manufacturing plant, conveyor belts that transport heavy materials require precise rotational control at the pulleys. The rotary damper ensures that the pulleys rotate steadily, preventing any jolts or sudden stops that could cause the materials to shift or fall.

Protecting Components from Wear and Tear

High - torque operations generate significant stress on mechanical components. Over time, this stress can lead to premature wear and tear, resulting in costly repairs and downtime. The high - torque metal bidirectional rotary damper acts as a buffer, absorbing and dissipating the excess energy generated during rotation. In an automotive transmission system, for instance, the damper helps to cushion the torque fluctuations between the engine and the wheels. By reducing the impact of these fluctuations, the damper protects the gears, shafts, and other vital components from excessive wear, extending their lifespan and improving the overall reliability of the transmission.

2. Understanding the High - Torque Metal Bidirectional Rotary Damper

Working Principle

The high - torque metal bidirectional rotary damper typically operates on a fluid - viscous or magnetic - fluid principle. In a fluid - viscous damper, a viscous fluid, such as silicone - based oil, is enclosed within a chamber. When the damper is subjected to a rotational force, a piston or vane within the chamber moves through the fluid. The viscosity of the fluid resists this movement, creating a damping effect. The high - torque capacity is achieved through the use of a larger - sized piston or vane, a higher - viscosity fluid, or a more complex fluid - flow design. In a magnetic - fluid damper, a magnetorheological fluid is used. This fluid changes its viscosity when exposed to a magnetic field. By adjusting the strength of the magnetic field, the damping force can be precisely controlled, allowing for bidirectional operation.

Metal Construction Advantages

The use of metal in the construction of the rotary damper offers numerous advantages. Metals, such as stainless steel or aluminum alloys, are known for their high strength and durability. They can withstand the high - torque forces without deforming or breaking, ensuring the long - term reliability of the damper. Metal also has excellent heat - dissipation properties, which is crucial in high - torque applications where heat can be generated due to the friction between the moving parts. Additionally, metal construction provides better resistance to corrosion, making the damper suitable for use in harsh environments, such as those found in industrial plants, outdoor equipment, or marine applications.

Specifications

Model	R6301
Torque	0.5 - 10 Nm
Use Oil	Silicone Oil
Shell Material	SGCC
Shaft Material	POM
Usage Temperature	- 20 - 70℃
Max Use Angle	360°

3. Customization for Diverse Applications

Adjusting Torque Capacity

One of the key benefits of a high - torque metal bidirectional rotary damper is the ability to customize the torque capacity. Different applications require different levels of torque. In heavy - duty industrial machinery, such as large - scale presses, cranes, or mining equipment, a high - torque damper is essential to control the rotational movement of massive components. On the other hand, in more delicate applications, such as precision optical equipment or medical devices, a lower - torque damper may be sufficient. The damper can be designed with different internal configurations, such as varying the size of the piston or vane, using fluids with different viscosities, or adjusting the magnetic field strength (in magnetic - fluid dampers), to achieve the desired torque capacity.

Tailoring to Installation Requirements

Customization also extends to the installation requirements of the damper. The damper can be designed to fit into specific spaces and mounting arrangements. In automotive applications, where space is often limited, the damper can be customized to have a compact design without sacrificing its performance. It can be designed with specific mounting holes or brackets to match the existing mechanical structure of the vehicle. In aerospace applications, the damper may need to be lightweight yet still capable of providing high - torque damping. Customization allows for the use of lightweight metal alloys and optimized designs to meet these strict requirements.

4. Applications in Different Industries

Industrial Machinery

In industrial machinery, the high - torque metal bidirectional rotary damper is used in a wide range of equipment. In manufacturing plants, it is used in conveyor systems, robotic arms, and machine tools. In a robotic arm, the damper helps in precisely controlling the movement of the joints, allowing for accurate assembly of components. In machine tools, such as lathes or milling machines, the damper ensures that the rotating parts operate smoothly, reducing vibration and improving the quality of the finished products. The high - torque capacity of the damper allows it to handle the heavy loads and high - speed operations typically found in industrial machinery.

Automotive Industry

In the automotive industry, the rotary damper is used in various components. In the steering system, it helps in providing a smooth and controlled feel to the driver. The bidirectional functionality allows for damping in both left - hand and right - hand turns. In the transmission system, the damper protects the gears from torque fluctuations, improving the overall performance and lifespan of the transmission. In off - road vehicles, the high - torque damper is used in the suspension system to control the movement of the wheels, providing better traction and stability on rough terrains.

Aerospace Industry

Aerospace applications demand the highest level of reliability and performance. The high - torque metal bidirectional rotary damper is used in aircraft control surfaces, such as ailerons, rudders, and elevators. It helps in providing smooth and precise control of these surfaces, ensuring the safety and stability of the aircraft during flight. The lightweight yet strong metal construction of the damper makes it suitable for aerospace applications, where every gram of weight matters. The ability to customize the damper to meet the specific requirements of different aircraft models and flight conditions is also a significant advantage.

5. Conclusion

The high - torque metal bidirectional rotary damper is a versatile and essential component for reliable operation in a wide range of applications. Its ability to provide smooth and controlled rotational motion, protect components from wear and tear, and be customized to meet diverse requirements makes it a valuable asset in industries such as industrial machinery, automotive, and aerospace. If your business is involved in the design, manufacturing, or improvement of mechanical systems that require high - torque and bidirectional motion control, considering the implementation of a high - torque metal bidirectional rotary damper can significantly enhance the performance and reliability of your equipment. Reach out to our team of experts to explore how these dampers can be tailored to your specific needs.
