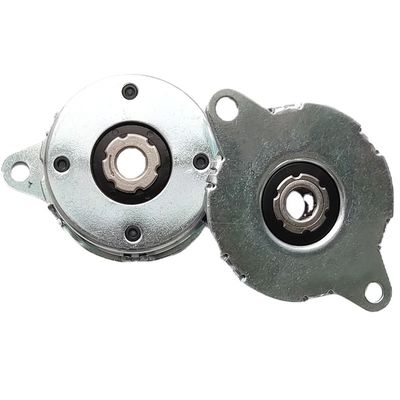

Easy Operation Metal Disk Damper One - Way Rotating Soft Close

MOQ:	1000
Price:	0.9
Standard Packaging:	Standard Export Packaging
Delivery Period:	15 working days
Payment Method:	T/T, Western Union
Supply Capacity:	50000pcs/day

Details Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

Certification

Model Number

Name:

Rotary Damper

Torque Range:

0.5 - 10Nm

Body Material:

Pressure Angle:

Silicone Oil

Function:

Soft Closing

Highlight:

Soft close Metal Disk Damper

One way Rotating Metal Disk Damper

Easy Operation Metal Disk Damper

Product Description

High - Quality Toilet Seat Cover Rotary Damper: Soft - Close Hydraulic and High - Torque Metal Rotary Damper

In the world of mechanical engineering and product design, the pursuit of smooth, controlled motion and gentle closures has led to the development of innovative components like the metal disk damper with one - way rotating and soft - close capabilities. This specialized damper has found applications in a wide range of industries, from automotive and furniture to consumer electronics, enhancing functionality and user experience.

1. The Need for One - way Rotating and Soft - close Mechanisms

Preventing Unwanted Movements

In many mechanical systems, there is a need to restrict movement to a single direction while ensuring that the motion is smooth and controlled. For example, in automotive seats, a one - way rotating mechanism can prevent the seat from accidentally rotating in the wrong direction, which could be dangerous during driving. In furniture, such as cabinet doors or drawers, a one - way rotation ensures that they close in a specific, predictable manner. The soft - close feature, on the other hand, is crucial for preventing sudden impacts that can cause damage to the components or startle users. In a kitchen cabinet, a soft - close mechanism ensures that the door closes gently, reducing wear and tear on the hinges and latch, and also creating a more peaceful environment.

Enhancing User Experience

A one - way rotating soft - close metal disk damper significantly improves the user experience. In consumer electronics, like laptop lids or tablet cases, the soft - close mechanism provides a more refined and elegant way of closing the device. It gives the user a sense of quality and control, making the interaction with the product more pleasant. In office furniture, such as swivel chairs with one - way rotation and soft - close features, employees can adjust their seating position smoothly and without any sudden jerks, enhancing their comfort during long working hours.

Specifications

Model	R6301
Torque	0.5 - 10 Nm
Use Oil	Silicone Oil
Shell Material	SGCC
Shaft Material	POM
Usage Temperature	- 20 - 70℃
Max Use Angle	360°

2. How the Metal Disk Damper Works

Construction of the Metal Disk Damper

The metal disk damper consists of multiple metal disks, typically made of high - quality stainless steel or other durable alloys. These disks are stacked together within a housing. The disks are designed with specific surface textures and tolerances to interact with each other in a controlled manner. The housing is engineered to hold the disks in place while allowing for relative rotation between them. Additionally, there are often seals and lubricants used to ensure smooth operation and prevent the ingress of dust or debris, which could affect the performance of the damper.

One - way Rotation Principle

The one - way rotation of the metal disk damper is achieved through a mechanical locking mechanism. This mechanism allows the disks to rotate freely in one direction but restricts rotation in the opposite direction. For example, a ratchet - like system can be incorporated into the damper design. When the damper is subjected to a rotational force in the allowed direction, the ratchet teeth disengage, enabling smooth rotation. However, when a force is applied in the non - allowed direction, the ratchet teeth engage, preventing rotation. This one - way functionality is crucial for applications where movement needs to be strictly controlled in a single direction.

Soft - close Mechanism

The soft - close feature of the metal disk damper is based on the principle of friction and energy dissipation. As the damper rotates towards the closed position, the metal disks start to rub against each other. The friction between the disks converts the kinetic energy of the moving part (such as a door or a lid) into heat energy, gradually slowing down the movement. The design of the disks, including their material properties, surface roughness, and the number of disks in the stack, is optimized to provide the right amount of friction for a smooth and gentle soft - close. Additionally, some metal disk dampers may incorporate additional springs or elastic elements to further fine - tune the soft - close behavior.

3. Advantages of the Metal Disk Damper

Durability and Longevity

The use of metal disks in the damper construction offers excellent durability. Metals are known for their high strength and resistance to wear and tear. In applications where the damper is subjected to frequent use, such as in a busy office environment or a high - traffic commercial space, the metal disk damper can withstand the repeated stress without significant degradation. The stainless - steel disks are also resistant to corrosion, making them suitable for use in environments with varying humidity levels, such as bathrooms or kitchens. This durability ensures that the one - way rotating soft - close mechanism continues to function smoothly over an extended period, reducing the need for frequent replacements.

Precise Control of Motion

The metal disk damper provides precise control over the rotation and closing motion. The ability to adjust the friction between the disks allows for customization of the damping force. In different applications, such as a delicate jewelry box that requires a very gentle soft - close or a heavy - duty industrial cabinet door that needs a more substantial damping force, the metal disk damper can be tailored to meet these specific requirements. The one - way rotation feature also ensures that the movement is always in the desired direction, providing a high level of reliability in mechanical systems.

Compact and Space - efficient Design

The design of the metal disk damper is relatively compact, making it suitable for applications where space is limited. The stacked - disk arrangement allows for a high - performance damping mechanism to be housed in a small footprint. In consumer electronics, where minimizing the size of components is crucial for sleek and portable designs, the metal disk damper can be easily integrated without taking up too much space. In furniture, it can be hidden within the frame or hinges, maintaining the aesthetic appeal of the product while still providing the necessary functionality.

4. Applications in Different Industries

Automotive Industry

In the automotive industry, the metal disk damper with one - way rotating and soft - close features is used in various components. In car doors, the one - way rotation ensures that the door closes in a safe and controlled manner, preventing it from swinging open unexpectedly. The soft - close mechanism reduces the impact when the door is closed, protecting the door frame and latch. In automotive seats, the damper can be used to control the rotation of the seat, providing a smooth adjustment for the driver and passengers. This is especially important in luxury cars, where a refined user experience is highly valued.

Furniture Industry

The furniture industry has widely adopted the metal disk damper. In cabinet doors, drawers, and even some types of folding furniture, the one - way rotating soft - close feature enhances the functionality and appearance of the products. It gives furniture a more high - end feel, as users can enjoy the smooth and quiet closing of doors and drawers. In office furniture, such as filing cabinets and desk drawers, the damper ensures that the contents are protected from sudden impacts when the drawers are closed. This is particularly useful in shared office spaces, where multiple people may use the furniture throughout the day.

Consumer Electronics

In consumer electronics, the metal disk damper is used in products like laptop lids, tablet covers, and even some types of portable speakers. The soft - close mechanism gives these devices a more premium look and feel. When closing a laptop lid, the gentle soft - close not only protects the screen and keyboard but also provides a satisfying user experience. In portable speakers, the one - way rotation can be used to control the orientation of the speaker, allowing users to adjust it to the optimal position for sound projection while ensuring that it stays in place once set.

5. Conclusion

The metal disk damper with one - way rotating and soft - close capabilities is a versatile and valuable component in modern mechanical design. Its ability to provide precise control of motion, durability, and a compact design makes it suitable for a wide range of applications across different industries. Whether it's enhancing the safety and comfort of automotive components, adding a touch of elegance to furniture, or improving the user experience of consumer electronics, the metal disk damper plays a crucial role. If your business is involved in product design, manufacturing, or improvement, considering the implementation of this innovative damper can significantly enhance the quality and functionality of your products. Reach out to our team of experts to explore how the metal disk damper can be customized to meet your specific needs and take your products to the next level.
