Custom Torque Range 30 - 400gf.Cm Soft Close Bidirectional Gear Rotary Damper

Custom Torque Range 30 - 400gf.Cm Soft Close Bidirectional Gear Rotary Damper

MOQ: 1000
Price: 0.9
Standard Packaging: Standard Export Packaging
Delivery Period: 15 working days
Payment Method: T/T, Western Union
Supply Capacity: 50000pcs/day
Detail Information
Place of Origin
CHINA
Brand Name
HIE
Model Number
OEM
Name:
Gear Rotary
Torque Range:
30-400gf.cm
Body Material:
PC
Pressure Angle:
20°
Oil:
Silicone Oil
Function:
Soft Closing
Highlight:

Custom Gear Rotary Damper

,

Soft Close Gear Rotary Damper

Product Description

Custom Torque Range 30 - 400gf.cm Soft Close Rotary Damper - Bidirectional Gear Rotary Damper



Product Introduction


Our custom Torque Range 30 - 400gf.cm Soft Close Rotary Damper, a bidirectional gear rotary damper, is a highly versatile and functional component that can enhance the performance of a wide range of applications. This damper combines the advantages of adjustable torque, soft close functionality, and bidirectional rotation, making it suitable for various mechanical systems.

Key Features

Adjustable Torque Range


  • The ability to precisely adjust the torque within the 30 - 400gf.cm range is a standout feature. This allows the damper to be customized to match the specific requirements of different applications. For instance, a lighter-duty mechanism might only need a torque setting of around 30gf.cm for smooth and effortless operation, while a more heavy-duty or resistant application could require a torque closer to 400gf.cm to ensure proper control and a secure closing or positioning. The adjustable torque mechanism is designed to be user-friendly and accurate, enabling quick and easy calibration to the desired level. This flexibility makes it an ideal choice for a diverse array of products, from small consumer electronics to industrial equipment.
  • The precise torque control also contributes to the overall durability and longevity of the associated components. By preventing over-torquing or under-torquing, it reduces the wear and tear on the rotating parts and the surrounding structure, ultimately prolonging the lifespan of the entire system.

Soft Close Functionality


  • The soft close feature is a core characteristic of this rotary damper. It utilizes a combination of mechanical and frictional principles to gradually slow down the rotational speed as the component approaches its closed position. This results in a gentle and quiet landing, eliminating the noisy and often jarring impact that can occur with traditional mechanisms. The soft close action not only adds a touch of refinement to the operation but also helps protect the associated components and the overall structure. In applications such as cabinet doors, access panels, or the lids of storage containers, the soft-close damper helps prevent damage to delicate items or internal mechanisms.
  • The soft close function can be adjusted in conjunction with the torque settings, allowing for a customized experience. This means that the speed and resistance of the closing motion can be fine-tuned to meet the specific needs of different users and application requirements.

Bidirectional Gear Rotary Mechanism


  • The bidirectional gear rotary mechanism offers enhanced versatility. It allows for smooth rotation in both clockwise and counterclockwise directions, with the soft close function effectively regulating the speed in either rotation. This is crucial for applications where the component needs to be opened and closed from different angles or positions. The gears are carefully engineered to provide a precise and consistent transmission of force, ensuring a reliable and controlled rotational motion.
  • The gear ratio can be adjusted to match the specific requirements of different applications, providing the right amount of resistance and speed control in both directions. This flexibility makes it suitable for a wide range of mechanical systems, such as hinges on doors or lids that need to be opened and closed with equal ease and control.

Durable and Reliable Construction


  • Built with durability in mind, the custom rotary damper is constructed from high-quality materials. The components are resistant to wear and tear, corrosion, and the various environmental factors that may be encountered in different applications. The materials used are also hygienic and easy to clean, which is essential for maintaining a healthy and efficient operation. The smooth surface of the damper helps to prevent the accumulation of dirt and debris, promoting good hygiene practices.
  • The design of the damper allows for easy installation and replacement. It can be quickly attached to the rotating shaft or component using simple screws or clips, and if any issues arise, it can be easily removed and replaced without significant disruption to the overall system.

Specification Details

  • Model Torque Body material Shaft material Oil Working Temperature Life cycle
    HIE-T020A 30-400gf.cm PC POM Silicone Oil -5℃ - 50℃ 20,000cycles
    External Diameter Dividing Dia Gear No. Modulus Pressure Angle
    10.4 8.8 11 0.8 20°

Application Scenarios


  • Ideal for use in furniture, such as cabinet doors, wardrobe doors, and rotating shelves. The adjustable torque and soft close features enhance the user experience and protect the furniture from damage.
  • Suitable for consumer electronics, like the hinges of laptops, tablets, or the covers of portable media players. The bidirectional gear rotary mechanism and soft close function make it a great fit for these applications, protecting the delicate internal components.
  • Can be used in household appliances, such as the doors of microwave ovens, refrigerators, or the lids of washing machines. It helps to prevent slamming and prolong the life of the appliance.
  • Also applicable in some industrial equipment, such as the access panels of control boxes or the covers of small machinery compartments, where controlled rotation and soft-close are desired.

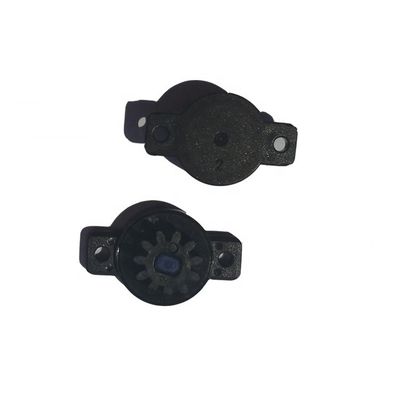

Custom Torque Range 30 - 400gf.Cm Soft Close Bidirectional Gear Rotary Damper 0Custom Torque Range 30 - 400gf.Cm Soft Close Bidirectional Gear Rotary Damper 1

Installation and Maintenance


  • Installation: The installation process is straightforward. The damper is attached to the rotating shaft or component using simple screws or clips, depending on the specific design. Clear installation instructions are provided to ensure proper alignment and connection.
  • Maintenance: Regular inspection of the damper for any signs of wear, such as gear tooth damage, loose parts, or a decrease in damping performance, is recommended. If any issues are detected, the damper can be easily replaced. Cleaning the damper with a mild detergent and a soft cloth is sufficient to keep it in good working condition.

Conclusion


In conclusion, our custom Torque Range 30 - 400gf.cm Soft Close Rotary Damper - Bidirectional Gear Rotary Damper is a high-quality and essential product for enhancing the functionality and user experience of a wide range of applications. Its adjustable torque range, soft close functionality, bidirectional gear rotary mechanism, durable construction, and easy installation and maintenance make it an ideal choice for designers, manufacturers, and users alike. If you are involved in the design, manufacturing, or maintenance of products that require controlled rotational motion and soft-close features, don't hesitate to contact us. Our team of experts is available to provide you with further information, technical support, and assistance in choosing the right damper for your specific needs.
